DECA / DUO

31 units commissioned by Jean-Francois Laporte for
visual and sound installation

  • Ethernet OSC
  • 2/10 MOSFETs 4 Amps
  • 15bits PWM resolution

Plasmose

1 units commissioned by Sofian Audry for a submarine installation.

  • Arduino base
  • 8 leds
  • 8 water Electrolysis channels
  • Water resistance boxe

Photo Sofian Audry

Vessels 2 (prototype)

6 units commissioned by vessels team (Me, Sofian Stephen Kelly, Adam Kelly) public installation. http://vessels.perte-de-signal.org/

  • Arduino base
  • 2 servos motors
  • RGB, 8 white LEDs
  • Infrared communication
  • Compas
  • High current driver
  • RTC
  • FLASH
  • ...

Graduateur 6 (high precision modulation)

2 units commissioned by Jean-Francois Laporte for
visual and sound installation

  • Ethernet
  • 6 driver 3 Amp
  • Ethernet communication
  • PIR and RS485 full duplex
  • 15bits PWM resolution

Patente A Gosse

4 units commissioned by Jonathan Villeneuve for
kinetic installation (Montreal september 2010)

  • Arduino base
  • 2 DC motor driver with current feed back
  • RS485 communication, multi totology
  • Header for USB ftdi communication
  • 4 analog input
  • 12 digital input output
  • Encoder, PIR, index ..
  • Sound clip piezo captation

MiniKore

Hey ! Now I'm working with Artificiel.org. A new site about my technical achievements will be online soon. For questions sam @ artificiel.org
http://recherche.artificiel.org

Multi-driver (Luminary core)

50 units commissioned by Undefine (The User) for
kinetic sound installation (Montreal september 2010)

  • ARM architecture UC (Luminary)
  • Step motor driver
  • DC motor driver with current feed back
  • USB communication
  • Ethernet communication
  • POE option
  • Distance sensor driver
  • Sound clip piezo captation

Vessel

12 units commissioned by Nocturn festival for robotic boat public performance (Halifax october 2010)

  • Atmega640
  • Fan driver
  • GP2 distance caption
  • IR communication (UART)
  • Servo motor driver
  • Stack option

Collaboration with Adam Kelly and Stephen Kelly and Sofian Audry
CFAT and Perte de signal

Motors driver

5 linear actuators motor driver. 1 units commissioned by Jean Francois Laporte for sound installation (Montreal august 2010)

  • RS485 communication
  • Feed back position
  • Daisy chain option
  • LED activity/power
  • Design for Firgelli model option P

Eye tracker

2 units commissioned by Jean Décarie "Eye tracker" (Montreal July 2010)

RGB Spot

RGB projectors. 25 units commissioned by Rosalie D.Gagné for project "Règne Artificiel" (Montreal may 2010)

  • 15 RGB leds
  • 3.5 Watts
  • Serial communication
  • LED activity/power
  • Start-up sequence

Led Strip

24 Infrared units commissioned by realisations.net (Montreal June 2010).

  • 6 X Infra LED per board
  • Flexible

PIR detector

Infra red detectors ethernet transmission for public installation. 2 unites commissioned by "Luz Uzine" for Aires-Libre festival (Montréal mai 2010).

  • 16 PIR sensors input (1/8 audio jack)
  • UDP
  • OpenSoundControl
  • Static IP
  • LED activity/power
  • patch MAX/MSP (data reception)

I collaborated with Patrick Coulombe
http://www.workinprogress.ca/

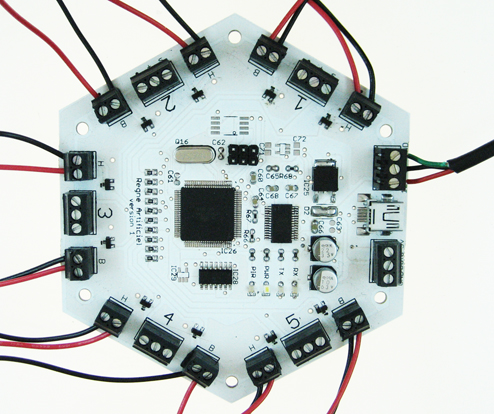

Règne artificiel

Lights and fans cotroller. 5 units commissioned by Rosalie Dumond Gagné. (Montréal may 2010)

  • 5 X RGB LED projector controller/sequencer
  • 10 X Fan 12 volts icontroller/sequencer
  • PIR sensor input
  • FLASH memory on board
  • USB communication (for MAX/MSP use)
  • ArduinoMega firmware (optional) Atmega1280

Sewing machine

AC dimmer / encoder reader / analog pedal for driving sewing machine. 8 units commissioned by Martin Messier (Montréal june 2010).

  • 2 X AC dimmer
  • Encoder magnetic reader
  • Pedale input
  • Base on Make Controller
  • UDP / OpenSoundControl
  • Static IP
  • LED activity/power
  • MAX/MSP (data reception)
